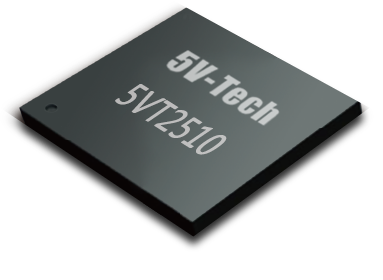

5VT2510

The 5VT2510 is a highly integrated EPON/GPON Home Gateway SoC designed for cost-effective home networking solutions. It features a single-core 533MHz ARMv5 processor with 32KB I/D cache, integrated DDR1 memory, PON MACs, SerDes, and Gigabit Ethernet PHYs. Supporting both GPON (ITU-T G.984.x) and EPON (IEEE 802.3) standards, it delivers high-speed upstream and downstream data rates with FEC, encryption, AES, and dying gasp support. Its hardware packet accelerator efficiently handles Layer2/3 NAT/NAPT, VLANs, PPPoE, IP, TCP/UDP, ICMP, IGMP, DHCP, and HTTP, with up to 32K NAPT rules. Additional features include ACL, QoS, DS-Lite multicast, VLANs up to 4K, and advanced traffic monitoring, mirroring, and scheduling. Peripherals include SPI NOR flash, UART, and I²C interfaces. Packaged in a compact 10×10mm QFN 88-pin form factor, the 5VT2510 is ideal for high-performance, low-cost home gateways.
